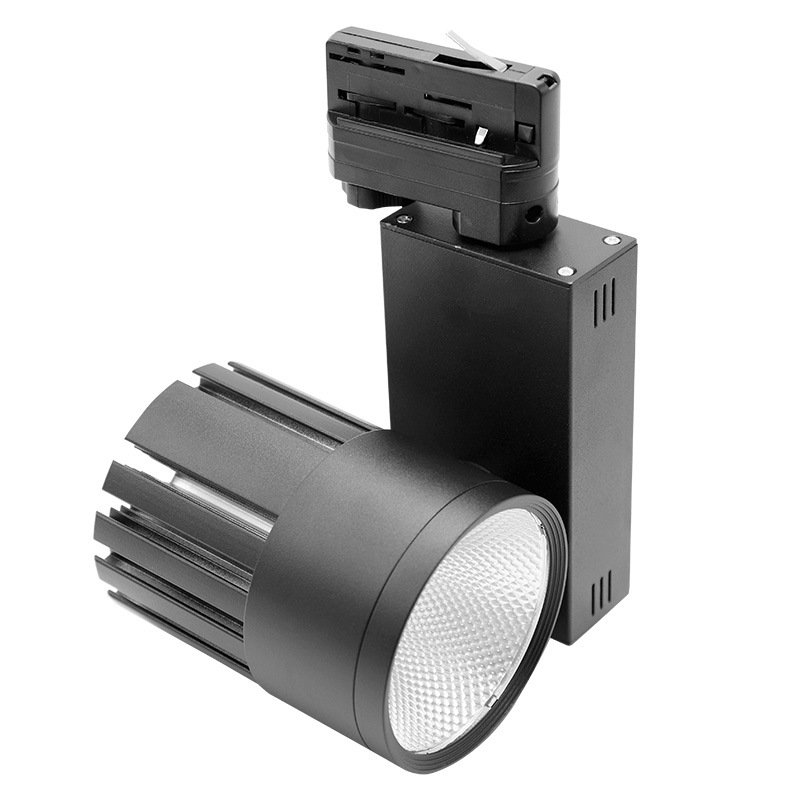

LED Track Lighting 40W provides highly customisable and adaptable lighting solutions to suit a variety of commercial and residential uses. It suits a wide range of residential applications, from a kitchen or bedroom to a basement, laundry room or garage.
Whether you want to highlight objects of interest or work under a directional task light, track lighting is the perfect flexible lighting solution for any space.
Track can be arranged in any configuration or size you need, whether you require linear runs, T shaped, U shaped, I shaped, S shaped, squares, circular or rectangular. It can be fitted on beams, on an angled or sloped ceiling where pendants may not be suitable, or on a vaulted ceiling to bring the light level down. ECORUN LED Track Lighting 40W utilise energy efficient LEDs, which offer cost benefits over traditional halogen lights or CFL.
- CREE COB light source,Ra80/Ra90.
- LIFUD/XZ-POWER/AD/LINKUAN drivers.
- Chimney-type die-cast Alu housing,clear glass high Alu purity,better heat dissipation.
- Adjustable body design,adustable beam angle 15deg.
- Paint baking surface,never fade,and anti-scratch.
- Triac,0/1-10V,DALI dimmable options are all available.
- Ease of installation and maintenance.
- Can work with motion sensors.
- Rated Life: 50,000 hrs.
- Limited Warranty: 3 years (5yrs and 7yrs optional).
Professional-grade LED Tracklights
New universal driver supports TRIAC,ELV & 0-10V dimming.High end.Superior performance.
True colors.
ECORUN LED downlights have Absolute White optics, which are rated at 3 step MacAdam Ellipses, making fixture-to-fixture color output highly consistent. In addition, they are black body accurate, making color shift minimal.
Smooth and pleasing light.
The microprismatic diffusion lens optimizes lumen output and delivers smooth, uniform illumination that enhances any space.
Easy installation.
Butterfly brackets allow a variety of ways to secure for 1/4" to 1/2" bar stock, nailer bars (included with rough-in), conduit bar stock or c-channels (optional). EZ-Connector allows you to finish installation without any wiring. Ceiling clamps automatically open and clamp down on the ceiling for super easy installation.
IC rating
For ceilings with insulation, ECORUN comes with an optional insulation contact housing.
SPECIFICATION
| Model No | ERTL-40W-J13 |
|---|---|
| Dimension | 97*145*200mm |
| LED Light Source/QTY | CREE COB light source |
| Power | 30W |
| Color Temp | 2700K/3000K/4000K/5000K/6000K |
| Luminous (lm) | 4000-4400LM |
| Lighting Effect | >100-110LM/W |
| CRI | 80/90Ra |
| P.F. | >0.95 |
| Power Efficiency | >89％ |
| Input Voltage | AC85-265V, 50/60Hz |
| Beam angle | 15° 24° |
| Work Temp | -20~60℃ |
| Working Humidity | 10％-90％ |
| IP Rate | IP20 |
| Main Material | Chimney-type die-cast Alu housing,clear glass cover |
| Frame color | Black surface housing,black heat-sink,clear glass cover |
| Lifespan | More than 50,000hrs |
| Warranty | 3 or 5 Years |
| Certification | CE ROHS SAA FCC TUV ETL |
| Track rail type | 2-wire,3-wire,4-wire(3 phase) |

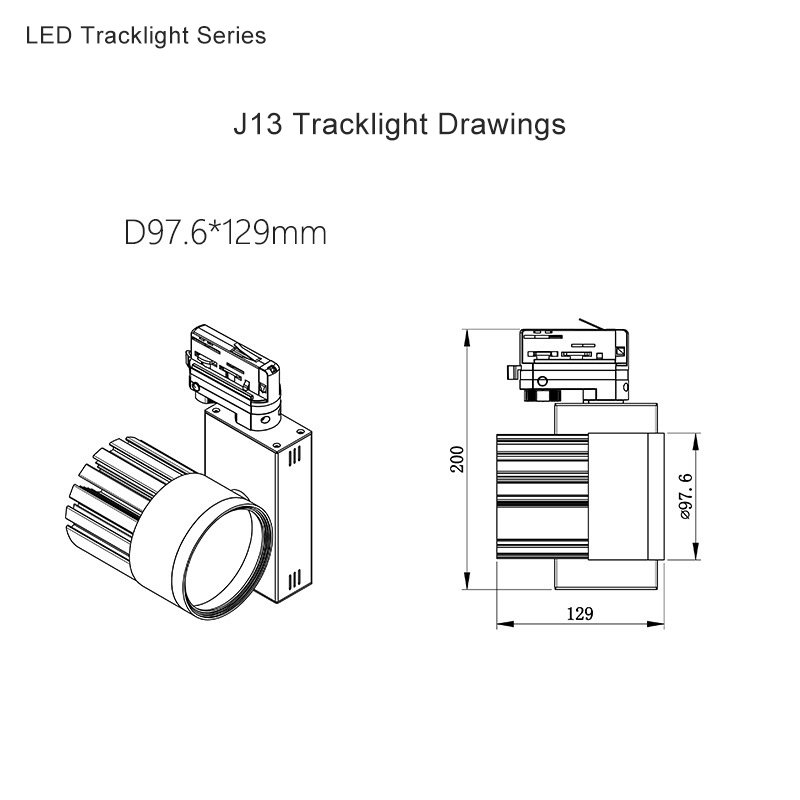

DIMENSION： MOUNTING：
DIMMING： CONTROL：
