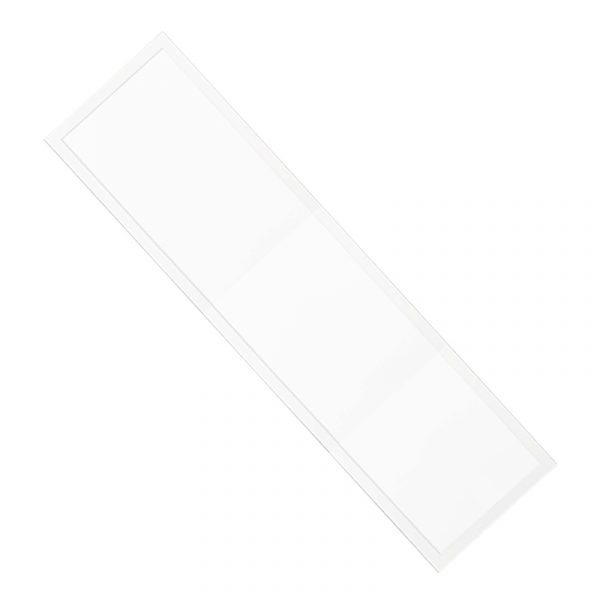

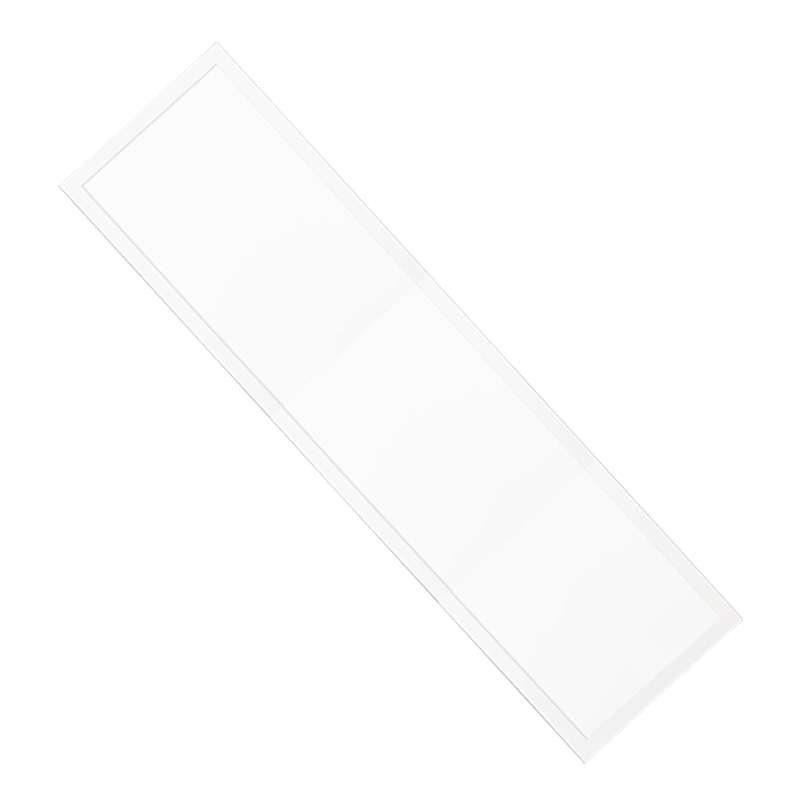

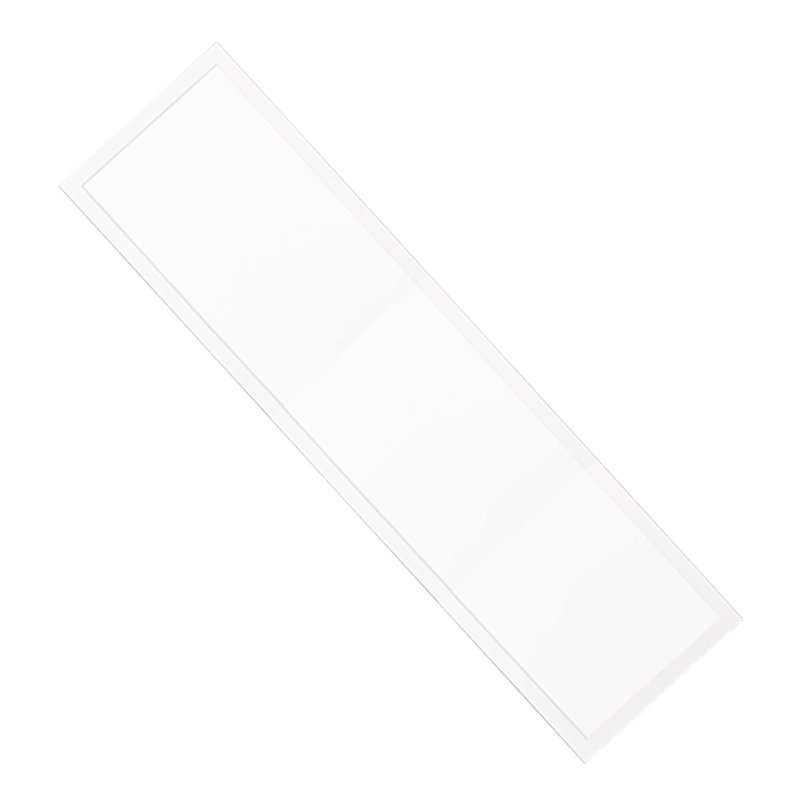

panel light 1195 40W

LED Panel Light are mainly used in false ceiling systems. ECORUN Edge Lit panels are easily installed in false ceilings, where the light is emitted from the panel with high efficiency and a wide light spread.The lighting panels are easy to install and replace,at the same time,they provide convenient access to the space when needed.

There are a number of options to consider when shopping for an LED panel for your project. These can include: Warranty, Colour Temperature, Wattage, Lumen Output, UGR (Unified Glare Rating) and Dimmable or Non-Dimmable. At ECORUN, we offer a wide variety of LED panels in various options to cater for any project requirements.

LED Panel light are attractive luminaires for drop or suspended ceilings.Various installtion options,including recessed,suspending,and surface mounting.ECORUN Edge Lit panels are characterized by their thin profile, light weight, and a heat sink built into the frame which extends their lifespan and makes them suitable for use in commercial buildings, including offices, warehouse, supermarket, school, libraries, hospitals, and other workspaces.

- 216pcs epistar smd4014 light source,Ra80.
- GREENSO,LIFUD,ZY or OEM brand Power brand driver.
- High purity Aluminum materials + Local Brand PS LGP
- White housing,paint baking surface,never fade and anti-scratch.
- Triac,0/1-10V,DALI dimmable options are all available.
- Easy suspended and recessed installation options
- Lifespan: 35,000 hrs.
- Limited Warranty: 3 years (5yrs and 7yrs optional).



SPECIFICATION

Model NoERDL-40W-P06
Dimension1195*395*9mm
LED Light Source/QTY216pcs epistar smd4014 light source
Power40W
Color Temp2700K-7000K
Luminous (lm)4000-4400LM
Lighting Effect>100-110LM/W
CRI80/90Ra
P.F.>0.95
Power Efficiency>89%
Input VoltageAC85-265V, 50/60Hz
Beam angle50°
Work Temp-20~60℃
Working Humidity10%-90%
IP RateIP40
Main MaterialNew private module housing design,better heat dissipation with small height
Frame colorWhite housing,polished high brightness reflector,PMMA LENS
LifespanMore than 35,000hrs
Warranty3 or 5 Years
CertificationCE ROHS SAA FCC TUV ETL

DIMENSION:                                                      MOUNTING:





DIMMING:                                                      CONTROL:
