A085 40W

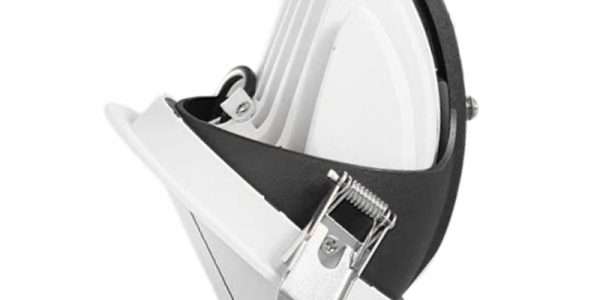

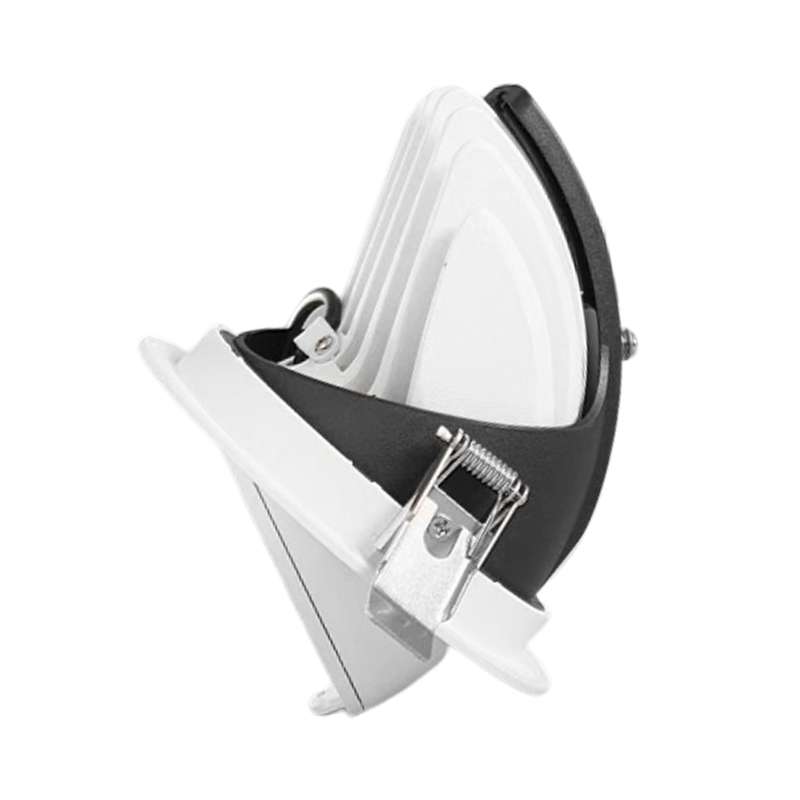

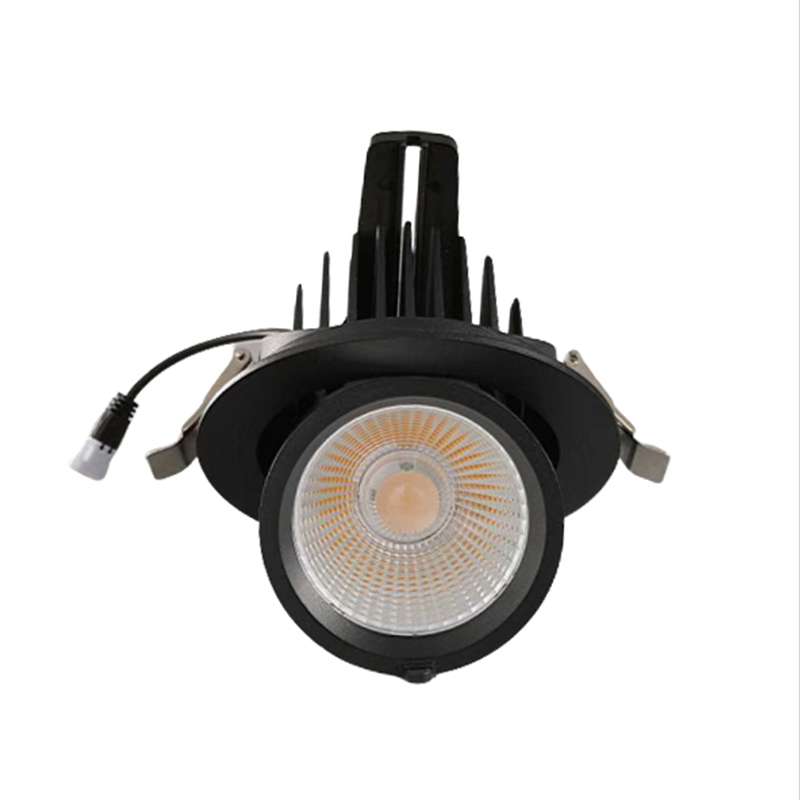

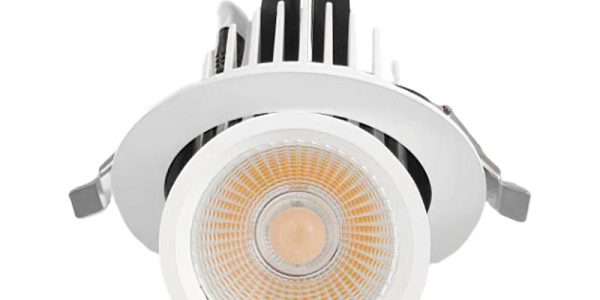

The Direct-to-Ceiling (DtC) 4″ Round LED Gimbal Downlight is designed to provide a 360-degree adjustable light source with 45-degree max tilt for directional lighting to highlight architecture, walls and artwork. It offers snap-in clips for quick and easy installation. The DtC Gimbal LED Downlight is ideal for installation in drywall, drop or sloped ceilings for residential and light commercial.

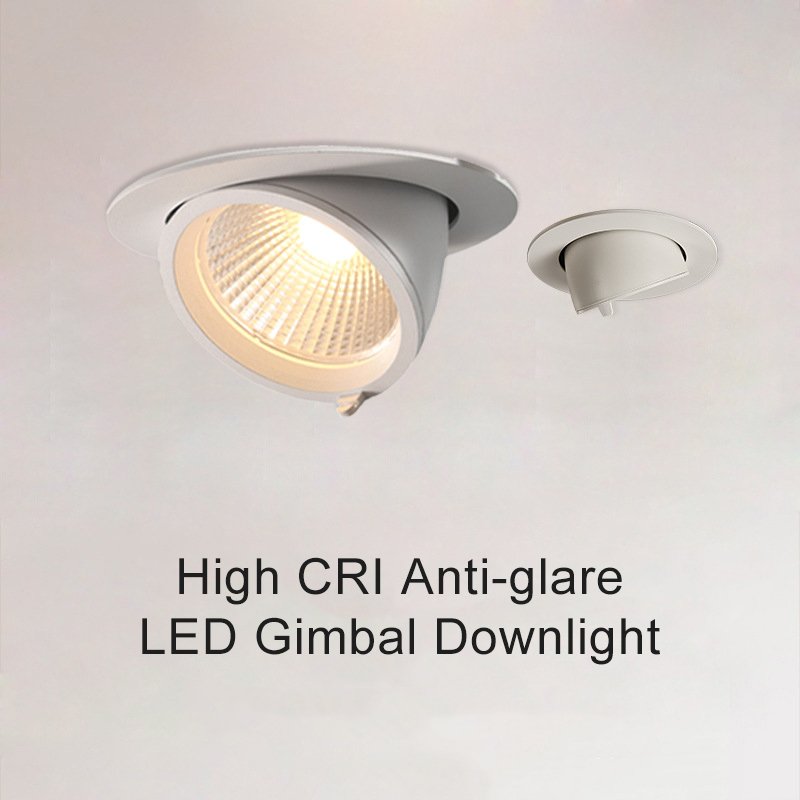

Gimbal recessed lighting trim, also known as adjustable or eyeball trim, gives you the option to control the direction of the light. This is great for sloped ceilings or when you need the flexibility to change spotlighting.

This downlight provides a 45º gimbal tilt and comes with installed 38º optic, but included 24° and 15° optics provide many beam spread options to suit your preference. Their high CRI of 90+ provides true color rendering in area of illumination as well. They are either 90-265V or 0-10V dimmable depending on which housing is utilized (sold separately).



- CREE COB light source,Ra80/Ra90.
- LIFUD/XZ-POWER/AD/LINKUAN drivers.
- Die-cast heat-sink,high Alu purity,better heat dissipation.
- Adjustable body design,adustable beam angle 15deg.
- Paint baking surface,never fade,and anti-scratch.
- Triac,0/1-10V,DALI dimmable options are all available.
- Ease of installation and maintenance.
- Can work with motion sensors.
- Rated Life: 50,000 hrs.
- Limited Warranty: 3 years (5yrs and 7yrs optional).

Professional-grade LED Downlights
New universal driver supports TRIAC,ELV & 0-10V dimming.High end.Superior performance.

True colors.
ECORUN LED downlights have Absolute White optics, which are rated at 3 step MacAdam Ellipses, making fixture-to-fixture color output highly consistent. In addition, they are black body accurate, making color shift minimal.

Smooth and pleasing light.
The microprismatic diffusion lens optimizes lumen output and delivers smooth, uniform illumination that enhances any space.

Easy installation.
Butterfly brackets allow a variety of ways to secure for 1/4" to 1/2" bar stock, nailer bars (included with rough-in), conduit bar stock or c-channels (optional). EZ-Connector allows you to finish installation without any wiring. Ceiling clamps automatically open and clamp down on the ceiling for super easy installation.

IC rating
For ceilings with insulation, ECORUN comes with an optional insulation contact housing.



SPECIFICATION

Model NoERDL-30W-A085
DimensionD140*H115mm Cutout:D125mm
LED Light Source/QTYCREE COB light source
Power30W
Color Temp2700K/3000K/4000K/5000K/6000K
Luminous (lm)3000-3300LM
Lighting Effect>100-110LM/W
CRI80/90Ra
P.F.>0.95
Power Efficiency>89%
Input VoltageAC85-265V, 50/60Hz
Beam angle15° 24° 38°
Work Temp-20~60℃
Working Humidity10%-90%
IP RateIP20
Main MaterialNew private thicken die-cast Aluminum housing,clear glass cover
Frame colorWhite,clear glass cover
LifespanMore than 50,000hrs
Warranty3 or 5 Years
CertificationCE ROHS SAA FCC TUV ETL

DIMENSION:                                                      MOUNTING:





DIMMING:                                                      CONTROL:
