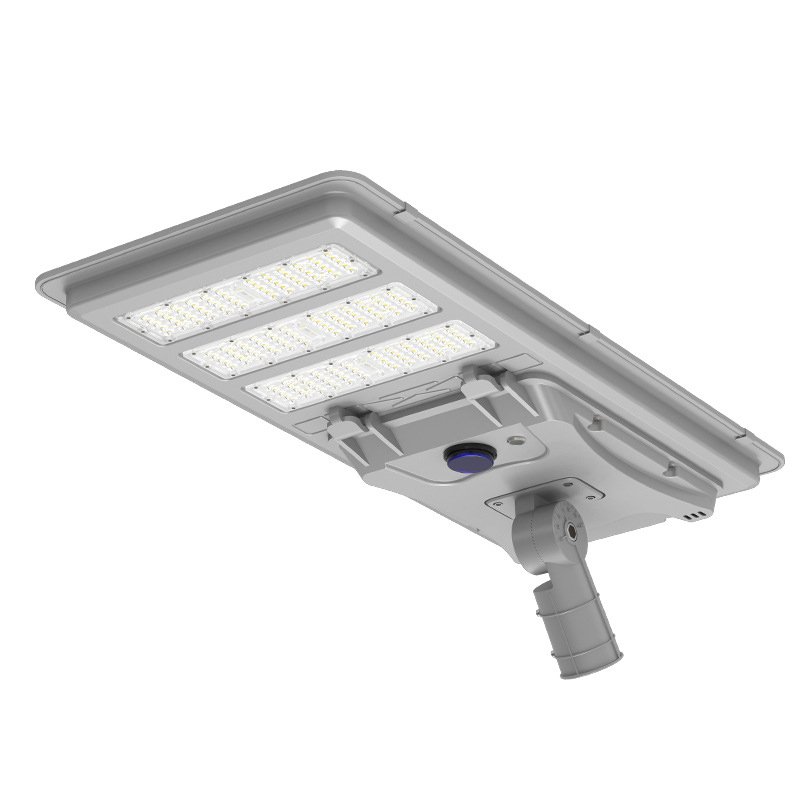

Pro-L Integrated Solar Streetlight 80W
Pro-L Integrated Solar Streetlight 80W 60W
Pro-L Integrated Solar Streetlight 60W 40W
Pro-L Integrated Solar Streetlight 40W
Pro-L Integrated Solar Streetlight 80W 60W 40W
Pro-L Integrated Solar Streetlight 60W 200LM/W
Pro-L Integrated Solar Streetlight 40W 200LM/W
Pro-L Integrated Solar Streetlight 60W
Pro-L Integrated Solar Streetlight 80W
Pro-L Integrated Solar Streetlight 80W 60W
Pro-L Integrated Solar Streetlight 60W 40W
Pro-L Integrated Solar Streetlight 40W
Pro-L Integrated Solar Streetlight 80W 60W 40W
Pro-L Integrated Solar Streetlight 60W 200LM/W
Pro-L Integrated Solar Streetlight 40W 200LM/W
Pro-L Integrated Solar Streetlight 60W
previous arrow
next arrow
Pro-L Integrated Solar Streetlight 80W
Pro-L Integrated Solar Streetlight 80W 60W
Pro-L Integrated Solar Streetlight 60W 40W
Pro-L Integrated Solar Streetlight 40W
Pro-L Integrated Solar Streetlight 80W 60W 40W
Pro-L Integrated Solar Streetlight 60W 200LM/W
Pro-L Integrated Solar Streetlight 40W 200LM/W
Pro-L Integrated Solar Streetlight 60W
previous arrow
next arrow

Solar lights need direct sunlight to work at maximum efficiency. 6 hours of full sunshine will allow solar garden light to operate for up to 15 hours. Reduced sunlight due to shade, cloudy days or rain will reduce working time 1 to 5 hours, depending on the reduction in irradiance.

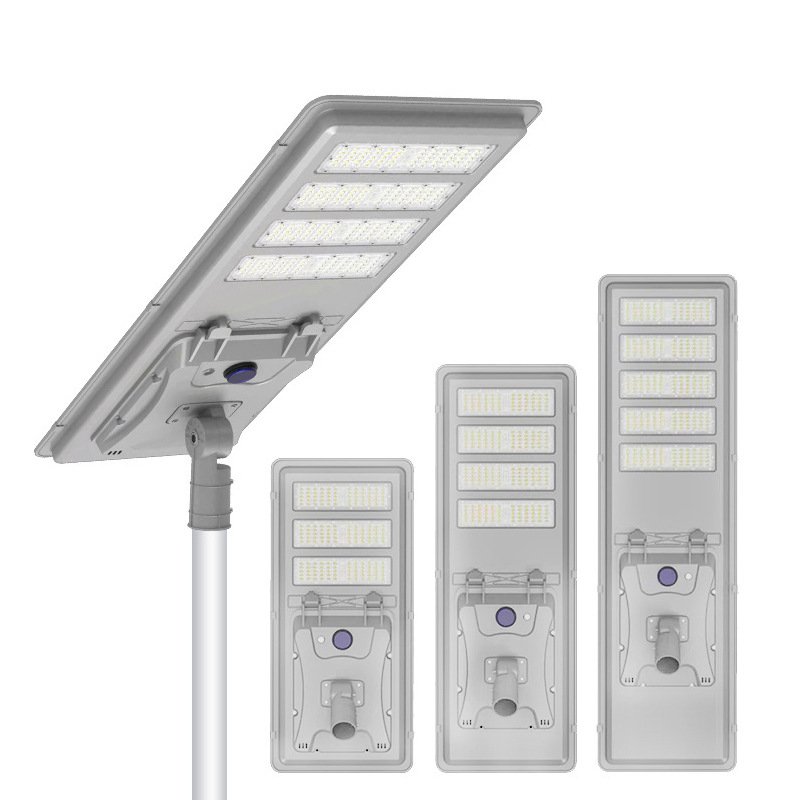

Our all-in-one solar street lights come in many options: 8000 lumens, 12000 lumens, 16000 lumens for standard fixtures,power include 40W,60W,80W.

Solar street lighting is worth the money in comparison to traditional lighting because it saves corporations, businesses, and municipalities more money over time. You won’t need to replace the LED fixtures as often, you save a lot of money on trenching, and don’t need to worry about buying expensive permits.

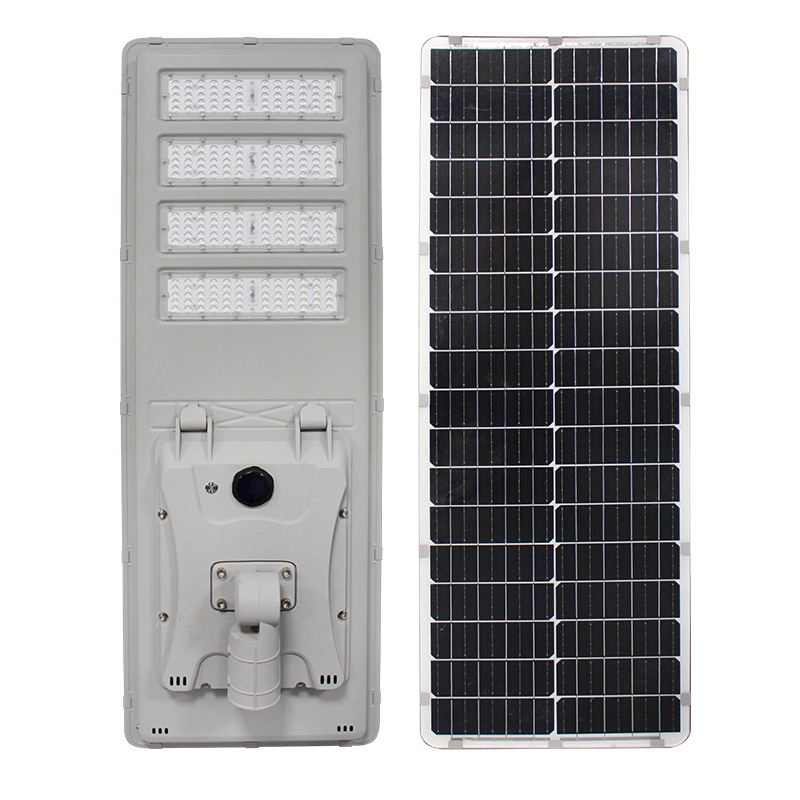

1. 300pcs Lumileds SMD3030 light source,high lumens efficiency.
2. Monocrystalline Silicon 18V 100W,12.8V 48AH LiFeO4 battery
3. High thicken Aluminum shell,paint baking color solution

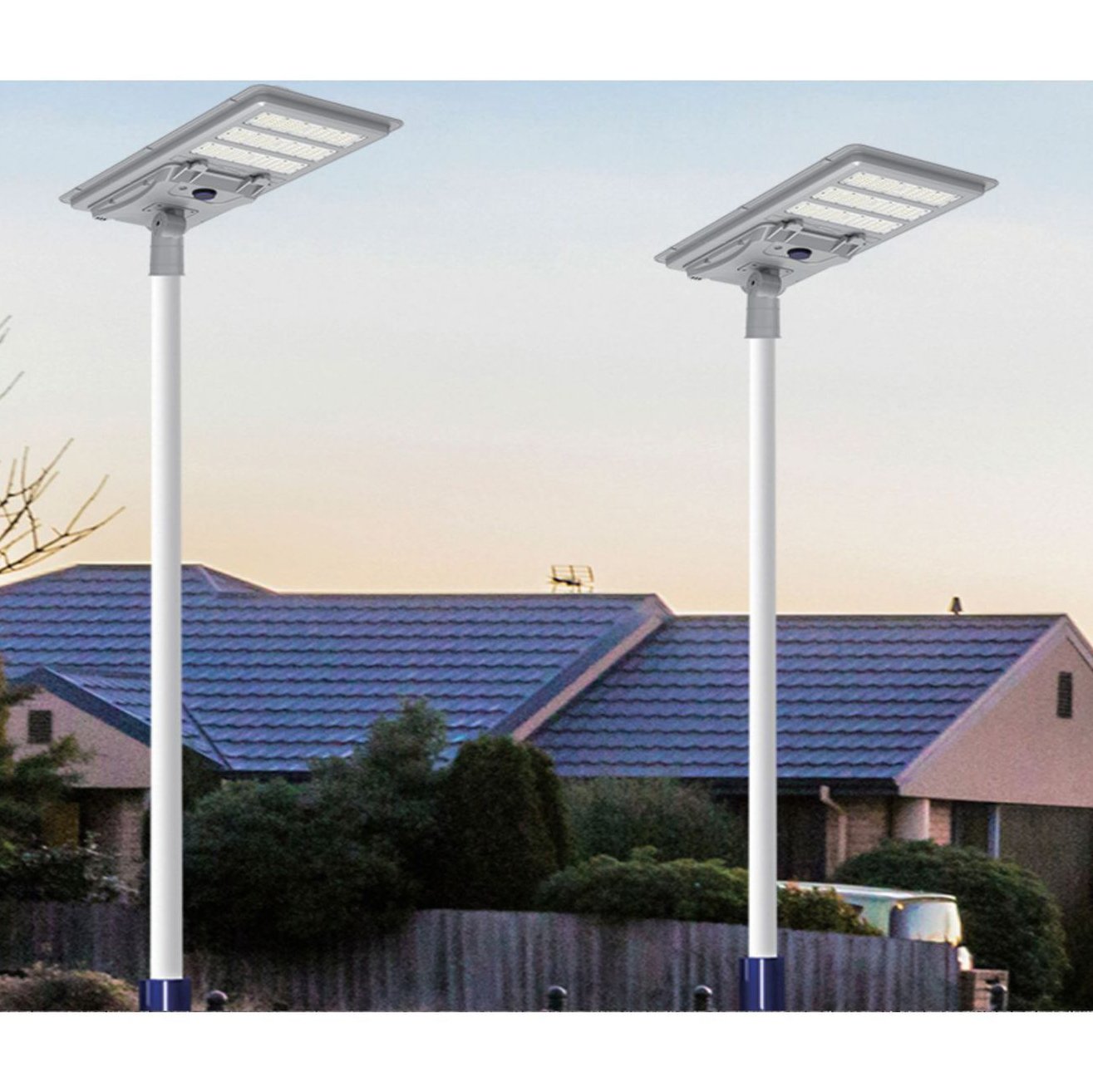

4. Install Height: 6-8meter
5. MTTP Controllor (Motion Sensor + Time Control + Daylight Sensor)
6. Length can be customized based on required specs,Adjustable angle for installation.

SPECIFICATION

Model NoER-ALSL-PRO-40L,ER-ALSL-PRO-60L,ER-ALSL-PRO-80L
Dimension887 x 400 x 280mm,1160 x 400 x 280mm,1435 x 400 x 280mm
LED Light Source/QTY300pcs lumileds SMD3030 light source
Power40W,60W,80W
Solar Panel ParametersMonocrystalline Silicon 18V 100W
Battery Parameters12.8V 48AH LiFeO4 battery
System Voltage12.8V
Luminous (lm)8000LM,12000LM,16000LM
Lighting effect>200LM/W
CRI70Ra/80Ra
Charge Time4-6hrs
Work Temp-20~60℃
Working Time>14hrs(100% brightness),2-3 rainy days
Installation Hole60MM,80MM

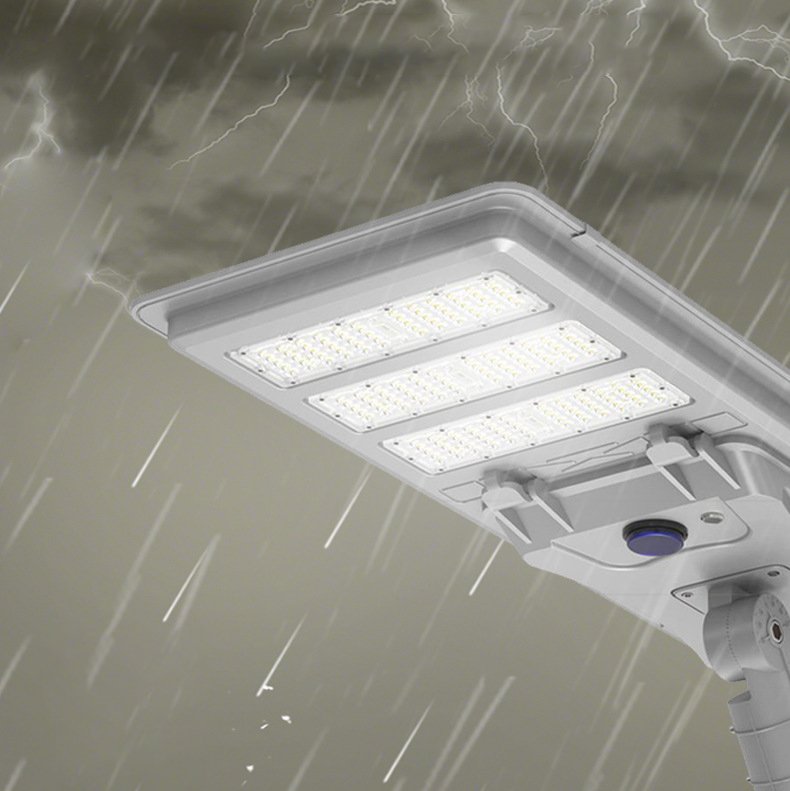

Protection GradeIP65/IP66,IK09
Main MaterialHigh thicken Aluminum shell,PC lens,Lumileds SMD3030
Frame colorGrey Housing
LifespanMore than 35,000hrs
Warranty3 or 5 or 7 Years
CertificationCE ROHS SAA FCC TUV ETL

DIMENSION:                                                      MOUNTING:





MPPT CONTROL:
