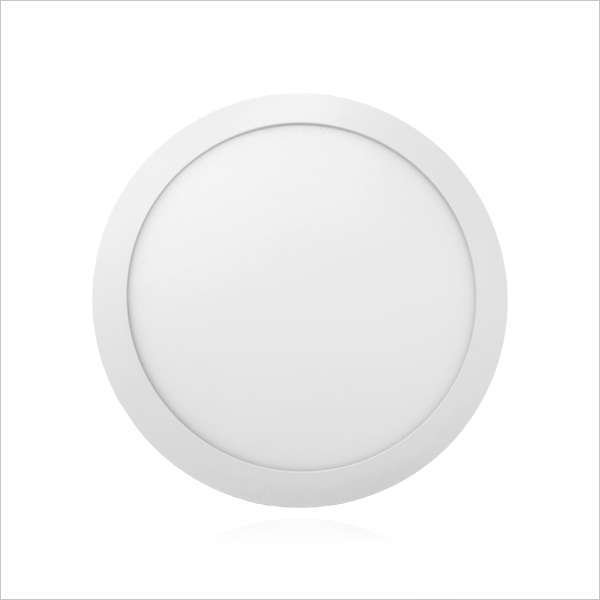

Slim Panel LED Diameter 400MM are mainly used in false ceiling systems. ECORUN Edge Lit panels are easily installed in false ceilings, where the light is emitted from the panel with high efficiency and a wide light spread.The lighting panels are easy to install and replace,at the same time,they provide convenient access to the space when needed.
There are a number of options to consider when shopping for an LED panel for your project. These can include: Warranty, Colour Temperature, Wattage, Lumen Output, UGR (Unified Glare Rating) and Dimmable or Non-Dimmable. At ECORUN, we offer a wide variety of LED panels in various options to cater for any project requirements.
Slim Panel LED Diameter 400MM are attractive luminaires for drop or suspended ceilings.Various installtion options,including recessed,suspending,and surface mounting.ECORUN Edge Lit panels are characterized by their thin profile, light weight, and a heat sink built into the frame which extends their lifespan and makes them suitable for use in commercial buildings, including offices, warehouse, supermarket, school, libraries, hospitals, and other workspaces.
- 180pcs epistar smd2835 light source,Ra80.
- GREENSO,LIFUD,ZY or OEM brand Power brand driver.
- High purity Aluminum materials + Local Brand PS LGP
- White housing,paint baking surface,never fade and anti-scratch.
- Triac,0/1-10V,DALI dimmable options are all available.
- Easy suspended and recessed installation options
- Lifespan: 35,000 hrs.
- Limited Warranty: 3 years (5yrs and 7yrs optional).
SPECIFICATION
| Model No | ERDL-36W-P02 |
|---|---|
| Dimension | D400*H20mm Cutout:D390mm |
| LED Light Source/QTY | 180pcs epistar smd4014 light source |
| Power | 36W |
| Color Temp | 2700K-7000K |
| Luminous (lm) | 3600LM |
| Lighting Effect | >100LM/W |
| CRI | 80/90Ra |
| P.F. | >0.95 |
| Power Efficiency | >89％ |
| Input Voltage | AC220-240V, 50/60Hz,no flicking |
| Beam angle | 50° |
| Work Temp | -20~60℃ |
| Working Humidity | 10％-90％ |
| IP Rate | IP40 |
| Main Material | New private module housing design,better heat dissipation with small height |
| Frame color | White housing,polished high brightness reflector,PMMA LENS |
| Lifespan | More than 35,000hrs |
| Warranty | 3 or 5 Years |
| Certification | CE ROHS SAA FCC TUV ETL |
DIMENSION： MOUNTING：
DIMMING： CONTROL：
