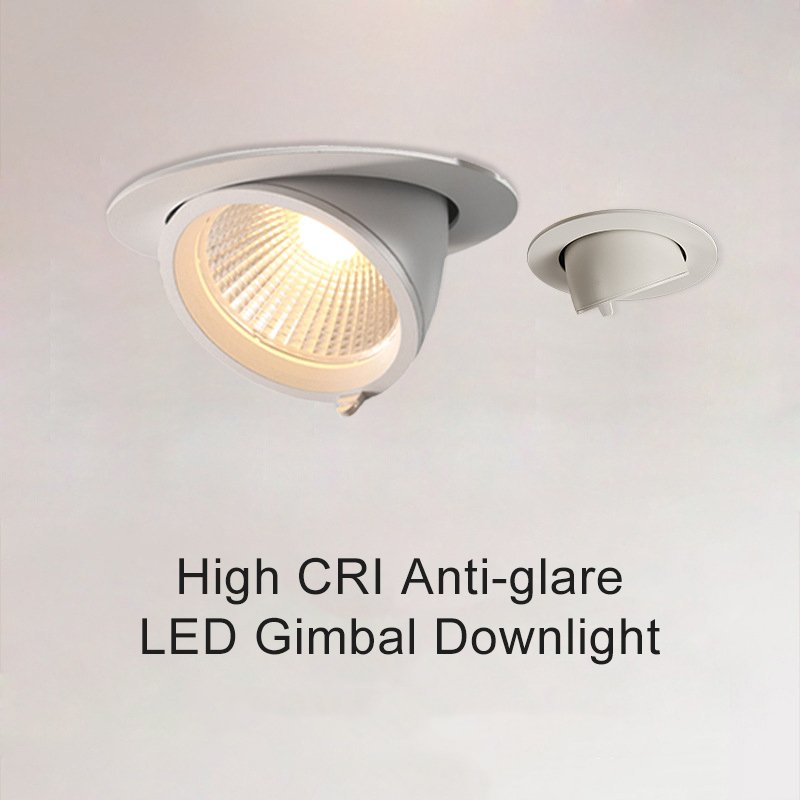

The Direct-to-Ceiling (DtC) 4″ Round LED Gimbal Downlight is designed to provide a 360-degree adjustable light source with 45-degree max tilt for directional lighting to highlight architecture, walls and artwork. It offers snap-in clips for quick and easy installation. The DtC Gimbal LED Downlight is ideal for installation in drywall, drop or sloped ceilings for residential and light commercial.
Gimbal recessed lighting trim, also known as adjustable or eyeball trim, gives you the option to control the direction of the light. This is great for sloped ceilings or when you need the flexibility to change spotlighting.
This downlight provides a 45º gimbal tilt and comes with installed 38º optic, but included 24° and 15° optics provide many beam spread options to suit your preference. Their high CRI of 90+ provides true color rendering in area of illumination as well. They are either 90-265V or 0-10V dimmable depending on which housing is utilized (sold separately).
Adjustable downlights allow the angle of the light to be directed as required, often to illuminate a specific area of the room or to accentuate a feature. Also referred to as a tilt downlight or an eyeball downlight due to the manoeuvrability of the fixture, the light beam can be easily repositioned if needs change. Tilt downlights are available in a range of styles to suit most modern and more traditional interiors.
ECORUN adjustable led downlight offers one of the most economical lighting solutions around. Dimmable is optional, and has a lumen output of 100-110lm/w, up to 130lm/W
With a ball joint adjustable gimbal it can be tilted by 15 degrees allowing the light to be directed on to a precise object or area of the room. ECORUN led adjustable downlight contain famous technological advances which is cold forging system solution. This technology offers improved heat sinking performances an improved, brighter lighting effects.
ECORUN adjustable downlight led include 3" 4" 5" 6" 8" led downlight size, and beam angle 15deg 24deg 38deg 60deg.
Professional-grade LED Downlights
New universal driver supports TRIAC,ELV & 0-10V dimming.High end.Superior performance.
True colors.
ECORUN LED downlights have Absolute White optics, which are rated at 3 step MacAdam Ellipses, making fixture-to-fixture color output highly consistent. In addition, they are black body accurate, making color shift minimal.
Smooth and pleasing light.
The microprismatic diffusion lens optimizes lumen output and delivers smooth, uniform illumination that enhances any space.
Easy installation.
Butterfly brackets allow a variety of ways to secure for 1/4" to 1/2" bar stock, nailer bars (included with rough-in), conduit bar stock or c-channels (optional). EZ-Connector allows you to finish installation without any wiring. Ceiling clamps automatically open and clamp down on the ceiling for super easy installation.
IC rating
For ceilings with insulation, ECORUN comes with an optional insulation contact housing.
SPECIFICATION
| Model No | ERDL-30W-A06 |
|---|---|
| Dimension | D180*H128mm Cutout:D145mm |
| LED Light Source/QTY | CREE COB light source |
| Power | 30W |
| Color Temp | 2700K/3000K/4000K/5000K/6000K |
| Luminous (lm) | 3000-3300LM |
| Lighting Effect | >100-110LM/W |
| CRI | 80/90Ra |
| P.F. | >0.95 |
| Power Efficiency | >89％ |
| Input Voltage | AC85-265V, 50/60Hz |
| Beam angle | 50° |
| Work Temp | -20~60℃ |
| Working Humidity | 10％-90％ |
| IP Rate | IP20 |
| Main Material | Cold forging system Aluminum housing,clear glass cover |
| Frame color | White surface housing,black heat-sink,clear glass cover |
| Lifespan | More than 50,000hrs |
| Warranty | 3 or 5 Years |
| Certification | CE ROHS SAA FCC TUV ETL |
DIMENSION： MOUNTING：
DIMMING： CONTROL：
