Technical Specifications

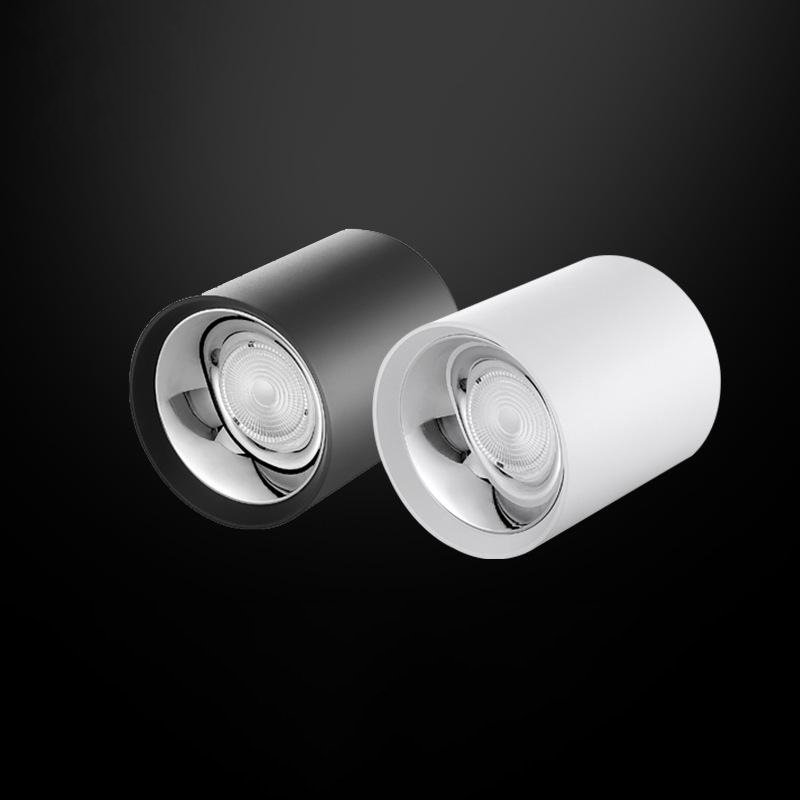

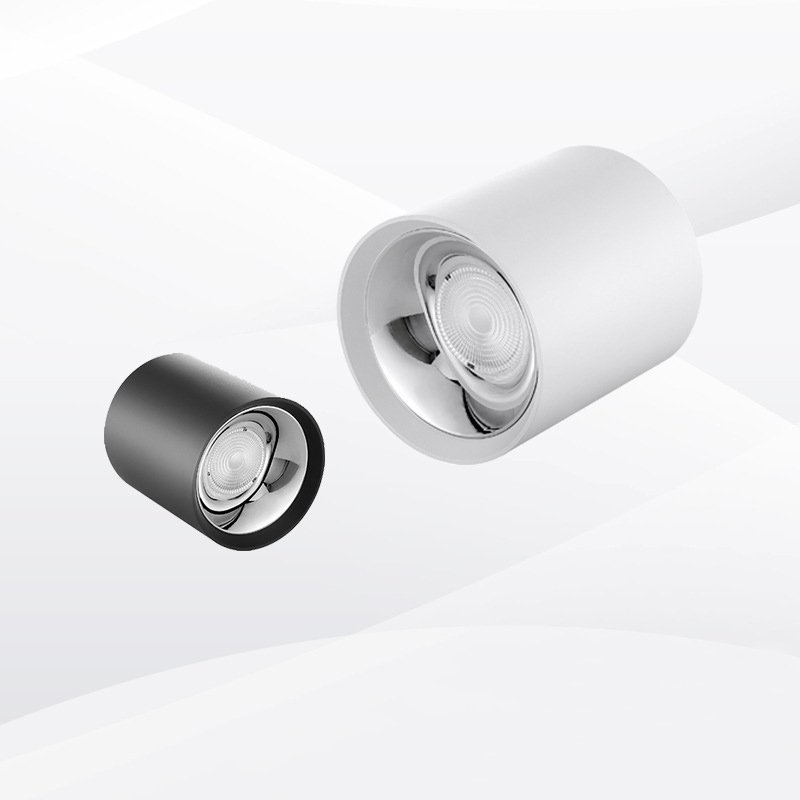

3″ LED Downlight, Low Glare UGR10,Ra98 Full Spectrum
E02 Series 3″ 7/10/15W 15/24/36/45/60deg UGR10
Quick Specs
Power: 7W,10W,15W
Voltage: 220-240Vac
Operating Temp. Range: -20°C to 60°C
Color Temperature: 2700K, 3000K, 4000K, 5000K
Dimming: optional
Power Factor: ≥ 0.5
CRI: Ra90/Ra98
Drivers: Brand(Philips,Lifud)
Dimension: D85*H85mm,D65*H85mm
Cutout: D75mm,D55mm
Rated Life: 50,000 hours
Warranty:5 years
- CREE COB light source,Ra80/Ra90.
- LIFUD/XZ-POWER/AD/LINKUAN drivers.
- Cold forging process heat-sink,high Alu purity,better heat dissipation.
- Adjustable body design,adustable beam angle 15deg.
- Paint baking surface,never fade,and anti-scratch.
- Triac,0/1-10V,DALI dimmable options are all available.
- Ease of installation and maintenance.
- Can work with motion sensors.
- Rated Life: 50,000 hrs.
- Limited Warranty: 3 years (5yrs and 7yrs optional).
Professional-grade LED Downlights
New universal driver supports TRIAC,ELV & 0-10V dimming.High end.Superior performance.
True colors.

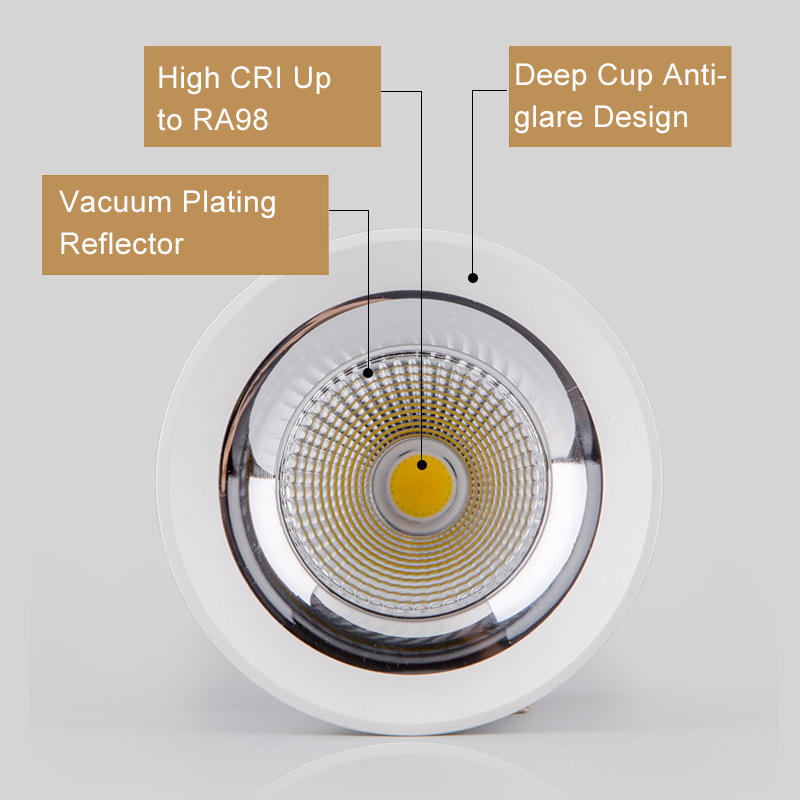

ECORUN LED downlights have Absolute White optics, which are rated at 3 step MacAdam Ellipses, making fixture-to-fixture color output highly consistent. In addition, they are black body accurate, making color shift minimal.
Smooth and pleasing light.
The microprismatic diffusion lens optimizes lumen output and delivers smooth, uniform illumination that enhances any space.
Easy installation.
Butterfly brackets allow a variety of ways to secure for 1/4" to 1/2" bar stock, nailer bars (included with rough-in), conduit bar stock or c-channels (optional). EZ-Connector allows you to finish installation without any wiring. Ceiling clamps automatically open and clamp down on the ceiling for super easy installation.
IC rating
For ceilings with insulation, ECORUN comes with an optional insulation contact housing.
SPECIFICATION
| Model No | ERDL-30W-A49 |
|---|---|
| Dimension | D150*H150mm |
| LED Light Source/QTY | CREE COB light source |
| Power | 30W |
| Color Temp | 2700K/3000K/4000K/5000K/6000K |
| Luminous (lm) | 3000-3300LM |
| Lighting Effect | >100-110LM/W |
| CRI | 80/90Ra |
| P.F. | >0.95 |
| Power Efficiency | >89％ |
| Input Voltage | AC85-265V, 50/60Hz |
| Beam angle | 50° |
| Work Temp | -20~60℃ |
| Working Humidity | 10％-90％ |
| IP Rate | IP20 |
| Main Material | New Private Die-mast Aluminum housing,clear glass cover |
| Frame color | White surface housing,black heat-sink,clear glass cover |
| Lifespan | More than 50,000hrs |
| Warranty | 3 or 5 Years |
| Certification | CE ROHS SAA FCC TUV ETL |

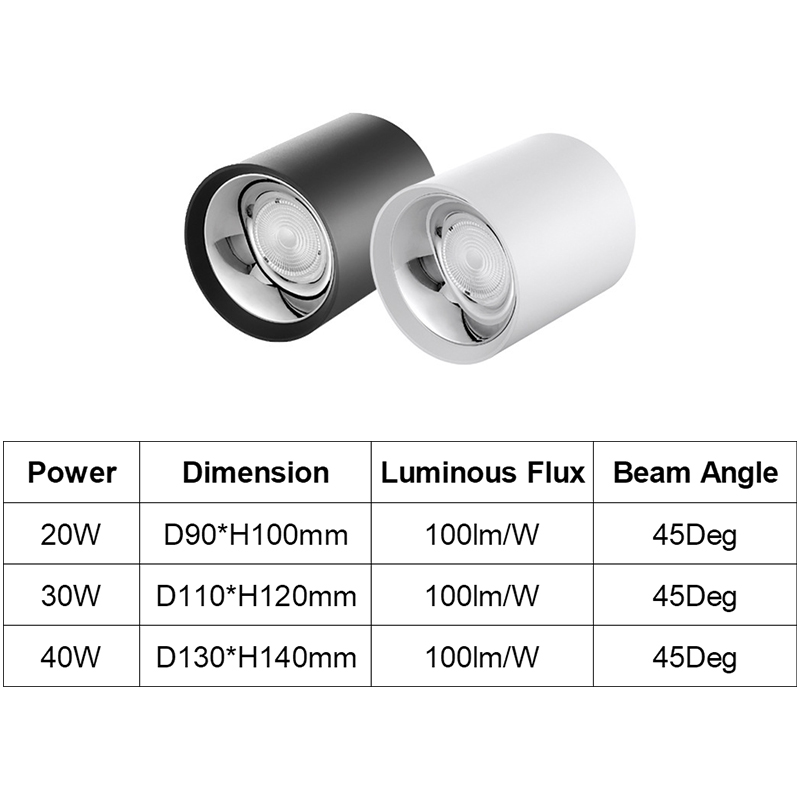

DIMENSION： MOUNTING：
DIMMING： CONTROL：
