TRI-PROOF WEB 05

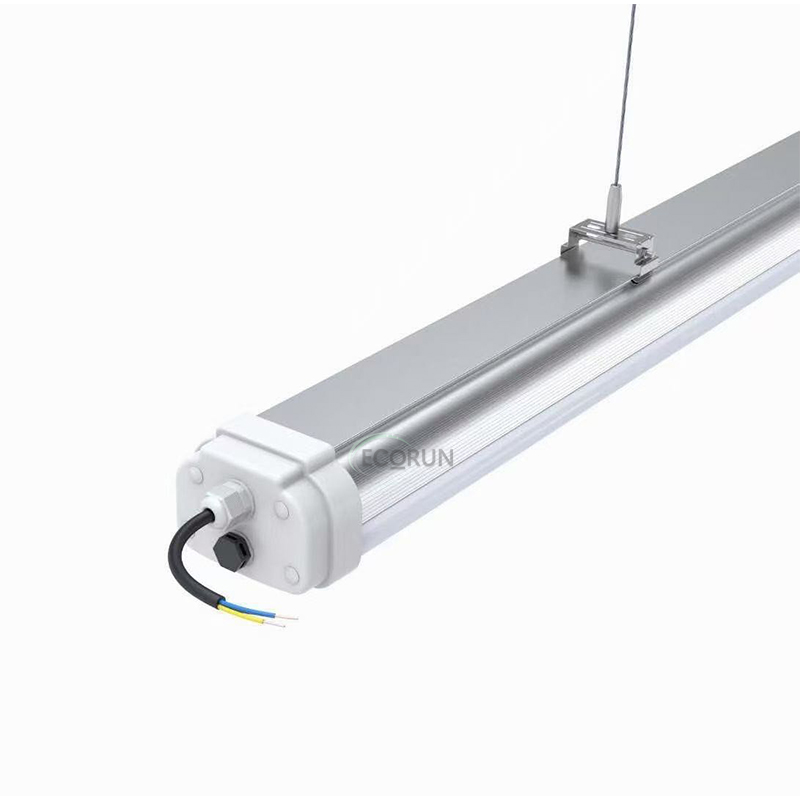

LED TRI PROOF LIGHT are heavy-duty,ultra-bright alternatives to traditional tube and strip light fixtures.They’re suitable for harsh environments with dust-tight as well as water and impact resistance.

Tri proof led light could be applied in industrial,education,outdoor,shop & retail.The specific applications are showrooms,warehouses,production halls,food industry,parking areas,refrigeration rooms,classrooms,cafeterias,auditorium,sports halls,chemical lab,pools,car parks,airports,train stations,gas stations,bus stations,shopping mall,supermarkets,led factory lights,etc.

This linkable series LED Tri-proof lights are featured by dustproof, waterproof and corrosion-proof with bright and soft light beam. Multiple fixtures can be linked together to create a daisy chain series (Max.33pcs of 1.5m) by plugging one fixture to another directly, or through electric cables. It is typically surface mounted on wall or ceiling with surface mounting kits. In the meantime, it can be suspended from ceilings with suspension kits to serve as pendant light fixtures. The length is available with 2ft, 4ft and 5ft. One unit of 5 feet 60 watt such luminaire emits 7300 lumens of cool white, natural white, or warm white illumination. The color and power can be freely changeable. Pair with optional microwave motion sensor, increased energy savings can be achieved. Remoted control, DALI & 1-10V dimming, Tuya WIFI, and Emergency function optional.

These integrated LED fixtures has weatherproof frosted polycarbonate housing are impact-resistant, and sealed against water and dust. Due to high protection degree of IP65/IP66, these tri-proof luminaires can be widely installed in tunnels, parking garages, warehouses, shops, corridors, kitchens, damp or wet locations, food processing plants, low bays, residential buildings, industrial and commercial facilities.

- Plastic materials heat-sink,non-isolated driver
- Philips/Lifud/Sosen/OEM brand driver,Motion Sensor is optional
- Triac,0/1-10V,DALI dimmable options are all available.
- Multiple mounting options.
- Rated IP65.
- 3-Dimension heat dissipation.
- Suspended and surface mount installation method,linkable is optional.
- Can work with motion sensors.
- Rated Life: 50,000 hrs.
- Limited Warranty: 3 years (5yrs and 7yrs optional).



SPECIFICATION

Model NoERTPL-40W
DimensionL1200*W75*H64mm
LED Light Source/QTY200pcs sanan smd2835 light source
Power40W
Color Temp3000K/4000K/5000K/6000K
Luminous (lm)6000LM
Lighting Effect>150LM/W
CRI70Ra/80Ra
P.F.>0.95
Power Efficiency>89%
Input VoltageAC90-277V, 50/60Hz
Beam angle120°
Work Temp-30~50℃
Working Humidity10%-90%
IP RateIP65
Main MaterialPlastic materials heat-sink,non-isolated driver
Frame colorWhite housing
LifespanMore than 35,000hrs
Warranty3 or 5 or 7 Years
CertificationCE ROHS SAA FCC TUV ETL

DIMENSION:                                                      MOUNTING:





DIMMING:                                                      CONTROL:
