FHB WEB 055

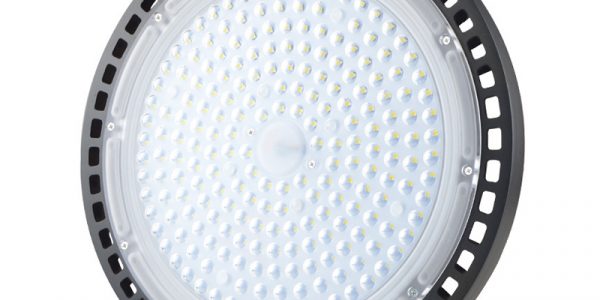

The Future High Bay Series is a suspension mounted LED high bay floodlight that’s ideal for warehouses, workshops and other industrial applications. It is available in two output options: a 100W model that delivers 18,000 lumens,a 150W model that delivers 27,000 lumens and 200W model that delivers 36,000 lumens.

The fixture’s construction consists of cast aluminum housing, black thermoset powder coated finish, stainless steel hardware and a tempered glass lens. The Future High Bay Series has a 50,000-hour rated life, can operate in a wide temperature range and is backed by a three to seven years warranty.

- Die-cast aluminum.
- Mean Well HBG driver,SOSEN Power,Done driver,OEM driver.
- 0-10V Dimming.
- Multiple mounting options.
- Rated IP65.
- 3-Dimension heat dissipation.
- Ease of installation and maintenance.
- Can work with motion sensors.
- Rated Life: 50,000 hrs.
- Limited Warranty: 5years or 7years

SPECIFICATION

Model NoFHB-100W
DimensionD275xH80mm
LED Light Source/QTY280pcs lumileds smd2835 light source
Power100W
Color Temp3000K/4000K/5000K
Luminous (lm)17000LM
Lighting Effect>170LM/W
CRI70Ra/80Ra
P.F.>0.95
Power Efficiency>89%
Input VoltageAC90-277V, 50/60Hz
Beam angle60°90°120°
Work Temp-30~50℃
Working Humidity10%-90%
IP RateIP65
Main MaterialHigh thicken Aluminum shell,lumileds SMD2835
Frame colorBlack housing
LifespanMore than 50,000hrs
Warranty5 or 7 Years
CertificationCE ROHS SAA FCC TUV ETL
